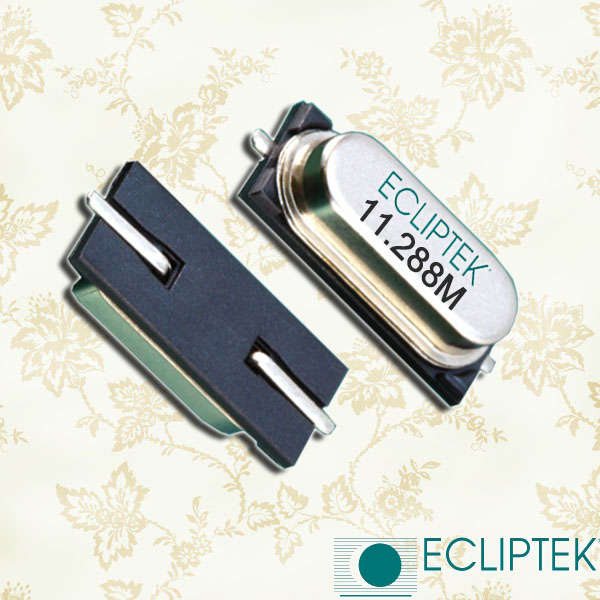

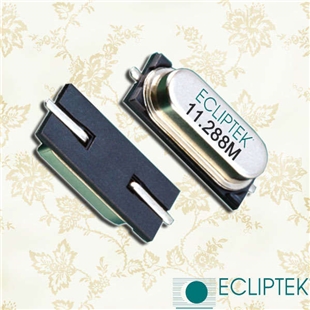

更多>>日蝕美國晶振E1S,E1SAA22-27.000M音叉晶體
- 頻率：27MHZ
- 尺寸：13.3*4.85mm
- 應 用： 日蝕美國晶振E1S,E1SAA22-27.000M音叉晶體,Ecliptek晶振,SMD石英晶振,歐美進口晶振,SMD晶體,無源晶體,石英晶體諧振器,型號E1S,編碼E1SAA22-27.000M是一款金屬面貼片型的石英晶體,尺寸為13.3*4.85mm,頻率27MHZ,精度100...
-
-
.jpg)

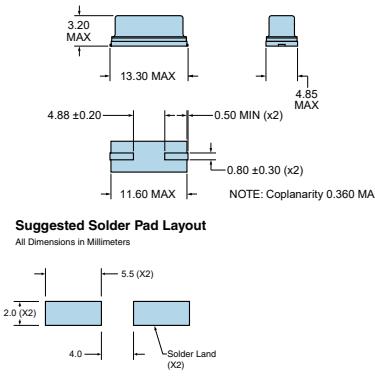

日蝕美國晶振E1S,E1SAA22-27.000M音叉晶體,Ecliptek晶振,SMD石英晶振,歐美進口晶振,SMD晶體,無源晶體,石英晶體諧振器,型號E1S,編碼E1SAA22-27.000M是一款金屬面貼片型的石英晶體,尺寸為13.3*4.85mm,頻率27MHZ,精度100ppm,負載7pF,工作溫度-0~+70°C,采用先進的生產技術匠心打磨而成,產品具有優良的高質量低損耗的特點,非常適合用于兒童玩具,智能產品等領域.
E1SAA25-6.000M普通貼片石英晶振外觀使用金屬材料封裝的,具有高穩定性,高可靠性的石英晶體振蕩器,晶振外觀本身使用金屬封裝,充分的密封性能,可確保其高可靠性,采用編帶包裝,外包裝采用朔膠盤,可在自動貼片機上對應自動貼裝等優勢.

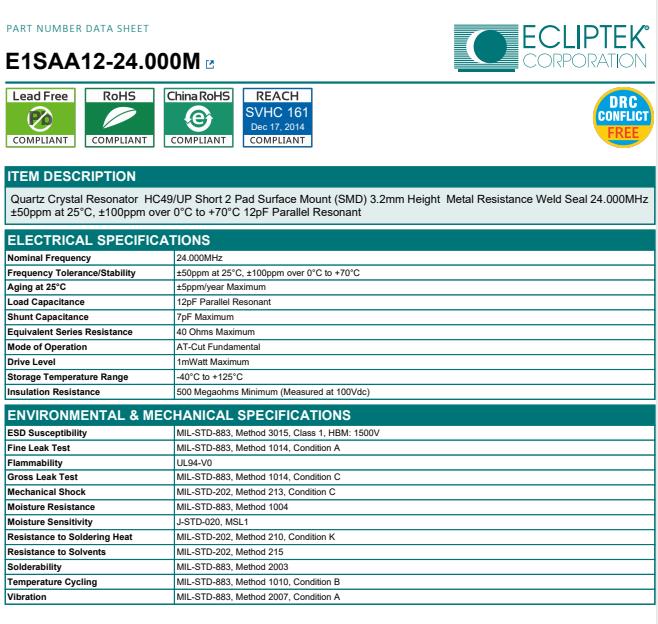

| 日蝕晶振規格 | 單位 | 日蝕貼片晶振頻率范圍 | 石英晶振基本條件 |
| 標準頻率 | f_nom | 27.0MHZ | 標準頻率 |
| 儲存溫度 | T_stg | -40°C ～ +125°C | 裸存 |
| 工作溫度 | T_use | -0°C ～ +70°C | 標準溫度 |
| 激勵功率 | DL | 200μW Max. | 推薦:1μW ～ 100μW |
| 頻率公差 | f_— l |
±15 × 10-6 (標準), (±10 × 10-6 ～ ±30 × 10-6 可用) |
+25°C 對于超出標準的規格說明, 請聯系我們以便獲取相關的信息,0755-27876565 |
| 頻率溫度特征 | f_tem | ±100 × 10-6/-40°C ～ +85°C | 超出標準的規格請聯系我們. |
| 負載電容 | CL | 7PF | 超出標準說明,請聯系我們. |
| 串聯電阻(ESR) | R1 | 100μW | -40°C — +85°C, DL = 100μW |
| 頻率老化 | f_age | ±3 × 10-6 / year Max. | +25°C,第一年 |
.jpg)
日蝕晶振集團環?；纠砟睿?br /> 1.作為良好的企業市民,遵循本公司的行動方針,充分關心維護地球環境.遵守國內外的有關環保法規.
2.保護自然環境,充分關注自然生態等方面的環境保護,維持和保全生物多樣性.
3.有效利用資源和能源,認識到資源和能源的有限性,努力進行有效利用.
4為構建循環型社會做出貢獻,致力于減少石英晶體,貼片晶振,有源晶體振蕩器材料的廢棄物及廢棄物的再利用核再生循環,努力構建循環型社會.
5.推進環保型業務,充分發揮綜合實力,推進環保型業務,為減輕社會的環境負荷做出貢獻.
6.建立環境管理系統,充分運用環境管理系統,設定環境目的和目標,定期修正,不斷改善,努力預防環境污染.
日蝕晶振集團將建立可行的技術及經濟性環境目標,并確保其環境保護活動的質量.
集團公司將關注所有環境適用的法律、法規和協議的遵守情況.另外為更有效的進行環境保護,將建立自己的特有的環境標準.
集團將在各領域內的商務運作中實施持續改進,包括能源資源的保持,回收再利用以及減少?gòu)U棄物等.
| 歐美進口晶振編碼 | Cut/Mode | Package Description | Frequency Stability | Operating Temperature Range | Aging | Shunt Capacitance |
| EA5070CA22-6.000M | AT-Cut Fundamental | SMD Ceramic 5.0mm x 7.0mm | ±50ppm | -40°C to +85°C | ±3ppm | 7pF Maximum |
| EA5070CA24-6.000M | AT-Cut Fundamental | SMD Ceramic 5.0mm x 7.0mm | ±50ppm | -40°C to +85°C | ±3ppm | 7pF Maximum |
| EA5070CA27-6.000M | AT-Cut Fundamental | SMD Ceramic 5.0mm x 7.0mm | ±50ppm | -40°C to +85°C | ±3ppm | 7pF Maximum |
| EA5070CA30-6.000M | AT-Cut Fundamental | SMD Ceramic 5.0mm x 7.0mm | ±50ppm | -40°C to +85°C | ±3ppm | 7pF Maximum |
| EA5070CAS-6.000M | AT-Cut Fundamental | SMD Ceramic 5.0mm x 7.0mm | ±50ppm | -40°C to +85°C | ±3ppm | 7pF Maximum |
   EA5070NA12-6.000M |
AT-Cut Fundamental | SMD Ceramic 5.0mm x 7.0mm | ±15ppm | 0°C to +70°C | ±3ppm | 7pF Maximum |
| EA5070NA14-6.000M | AT-Cut Fundamental | SMD Ceramic 5.0mm x 7.0mm | ±15ppm | 0°C to +70°C | ±3ppm | 7pF Maximum |
| EA5070NA16-6.000M | AT-Cut Fundamental | SMD Ceramic 5.0mm x 7.0mm | ±15ppm | 0°C to +70°C | ±3ppm | 7pF Maximum |
| EA5070NA18-6.000M | AT-Cut Fundamental | SMD Ceramic 5.0mm x 7.0mm | ±15ppm | 0°C to +70°C | ±3ppm | 7pF Maximum |
| EA5070NA20-6.000M | AT-Cut Fundamental | SMD Ceramic 5.0mm x 7.0mm | ±15ppm | 0°C to +70°C | ±3ppm | 7pF Maximum |
| EA5070NA22-6.000M | AT-Cut Fundamental | SMD Ceramic 5.0mm x 7.0mm | ±15ppm | 0°C to +70°C | ±3ppm | 7pF Maximum |
| EA5070NA24-6.000M | AT-Cut Fundamental | SMD Ceramic 5.0mm x 7.0mm | ±15ppm | 0°C to +70°C | ±3ppm | 7pF Maximum |
| EA5070NA27-6.000M | AT-Cut Fundamental | SMD Ceramic 5.0mm x 7.0mm | ±15ppm | 0°C to +70°C | ±3ppm | 7pF Maximum |
| EA5070NA30-6.000M | AT-Cut Fundamental | SMD Ceramic 5.0mm x 7.0mm | ±15ppm | 0°C to +70°C | ±3ppm | 7pF Maximum |
| EA5070NAS-6.000M | AT-Cut Fundamental | SMD Ceramic 5.0mm x 7.0mm | ±15ppm | 0°C to +70°C | ±3ppm | 7pF Maximum |
| EA5070PA12-6.000M | AT-Cut Fundamental | SMD Ceramic 5.0mm x 7.0mm | ±15ppm | -20°C to +70°C | ±3ppm | 7pF Maximum |
| EA5070PA14-6.000M | AT-Cut Fundamental | SMD Ceramic 5.0mm x 7.0mm | ±15ppm | -20°C to +70°C | ±3ppm | 7pF Maximum |
| EA5070PA16-6.000M | AT-Cut Fundamental | SMD Ceramic 5.0mm x 7.0mm | ±15ppm | -20°C to +70°C | ±3ppm | 7pF Maximum |
| EA5070PA18-6.000M | AT-Cut Fundamental | SMD Ceramic 5.0mm x 7.0mm | ±15ppm | -20°C to +70°C | ±3ppm | 7pF Maximum |
| EA5070PA20-6.000M | AT-Cut Fundamental | SMD Ceramic 5.0mm x 7.0mm | ±15ppm | -20°C to +70°C | ±3ppm | 7pF Maximum |
| EA5070PA22-6.000M | AT-Cut Fundamental | SMD Ceramic 5.0mm x 7.0mm | ±15ppm | -20°C to +70°C | ±3ppm | 7pF Maximum |
| EA5070PA24-6.000M | AT-Cut Fundamental | SMD Ceramic 5.0mm x 7.0mm | ±15ppm | -20°C to +70°C | ±3ppm | 7pF Maximum |
| EA5070PA27-6.000M | AT-Cut Fundamental | SMD Ceramic 5.0mm x 7.0mm | ±15ppm | -20°C to +70°C | ±3ppm | 7pF Maximum |
| EA5070PA30-6.000M | AT-Cut Fundamental | SMD Ceramic 5.0mm x 7.0mm | ±15ppm | -20°C to +70°C | ±3ppm | 7pF Maximum |
| EA5070PAS-6.000M | AT-Cut Fundamental | SMD Ceramic 5.0mm x 7.0mm | ±15ppm | -20°C to +70°C | ±3ppm | 7pF Maximum |
| E1SAA10-6.000M | AT-Cut Fundamental | SMD HC-49/UP Short | ±100ppm | 0°C to +70°C | ±5ppm | 7pF Maximum |
| E1SAA12-6.000M | AT-Cut Fundamental | SMD HC-49/UP Short | ±100ppm | 0°C to +70°C | ±5ppm | 7pF Maximum |
| E1SAA14-6.000M | AT-Cut Fundamental | SMD HC-49/UP Short | ±100ppm | 0°C to +70°C | ±5ppm | 7pF Maximum |
| E1SAA15-6.000M | AT-Cut Fundamental | SMD HC-49/UP Short | ±100ppm | 0°C to +70°C | ±5ppm | 7pF Maximum |
| E1SAA16-6.000M | AT-Cut Fundamental | SMD HC-49/UP Short | ±100ppm | 0°C to +70°C | ±5ppm | 7pF Maximum |
| E1SAA17-6.000M | AT-Cut Fundamental | SMD HC-49/UP Short | ±100ppm | 0°C to +70°C | ±5ppm | 7pF Maximum |
| E1SAA18-6.000M | AT-Cut Fundamental | SMD HC-49/UP Short | ±100ppm | 0°C to +70°C | ±5ppm | 7pF Maximum |
| E1SAA19-6.000M | AT-Cut Fundamental | SMD HC-49/UP Short | ±100ppm | 0°C to +70°C | ±5ppm | 7pF Maximum |
| E1SAA20-6.000M | AT-Cut Fundamental | SMD HC-49/UP Short | ±100ppm | 0°C to +70°C | ±5ppm | 7pF Maximum |
| E1SAA22-6.000M | AT-Cut Fundamental | SMD HC-49/UP Short | ±100ppm | 0°C to +70°C | ±5ppm | 7pF Maximum |
| E1SAA23-6.000M | AT-Cut Fundamental | SMD HC-49/UP Short | ±100ppm | 0°C to +70°C | ±5ppm | 7pF Maximum |
| E1SAA24-6.000M | AT-Cut Fundamental | SMD HC-49/UP Short | ±100ppm | 0°C to +70°C | ±5ppm | 7pF Maximum |
| E1SAA25-6.000M | AT-Cut Fundamental | SMD HC-49/UP Short | ±100ppm | 0°C to +70°C | ±5ppm | 7pF Maximum |
| E1SAA27-6.000M | AT-Cut Fundamental | SMD HC-49/UP Short | ±100ppm | 0°C to +70°C | ±5ppm | 7pF Maximum |
| E1SAA30-6.000M | AT-Cut Fundamental | SMD HC-49/UP Short | ±100ppm | 0°C to +70°C | ±5ppm | 7pF Maximum |
| E1SAA32-6.000M | AT-Cut Fundamental | SMD HC-49/UP Short | ±100ppm | 0°C to +70°C | ±5ppm | 7pF Maximum |
